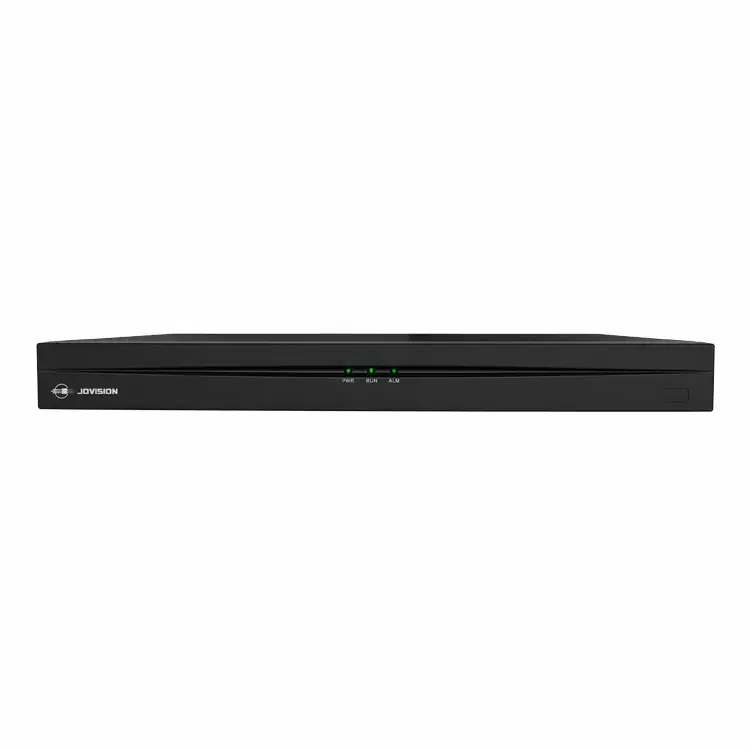

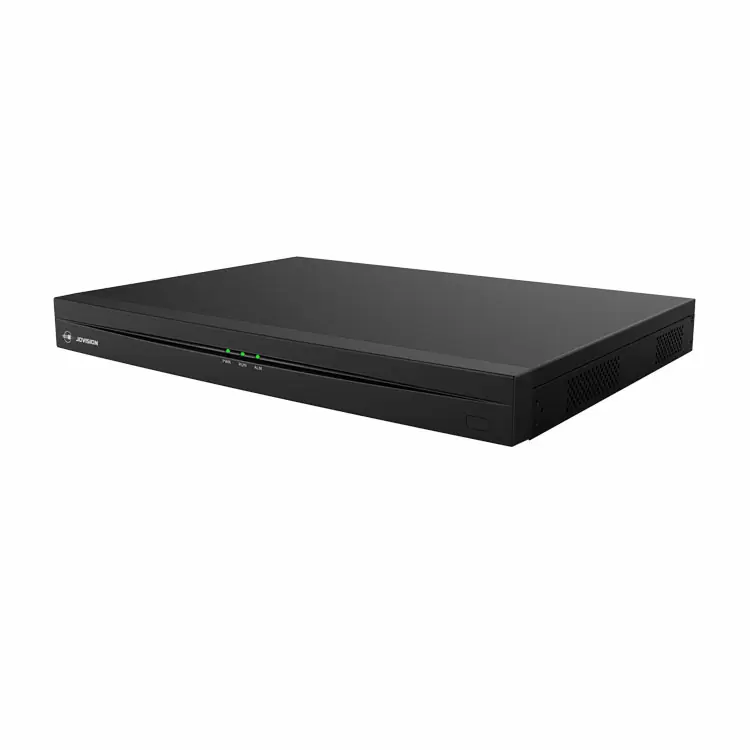

Jovision 4CH Video Wall Decoder
4 sold in last 24 hours
4CH Video Wall Decoder. 4x HDMI Output (Decode 4 screens video wall, Multiple screens can be spliced), 8CH of 4.0MP, 16CH 1080P Decoding Capability, Each output supports 1/4/8/9/16 split screen, Support multi-screen TV-wall, Screen merging and Sequencing
Key Features
• 4x HDMI Output (Decode 4 Screens Video Wall, Multiple Screens Can Be Spliced).
• 8CH of 5.0MP, 12CH of 4.0MP, 16CH 1080P Decoding Capability.
• Each Output Supports 1/4/8/9/16 Split Screen.
• Support Multi-screen TV-wall, Screen Merging and Sequencing
Specifications
| Model | JVS-D6016-4HD |
| Hardware | |
| Decoding Ability | 8CH 5.0MP@30fps,12CH 4.0MP@30fps, 16CH 1080P@30fps |

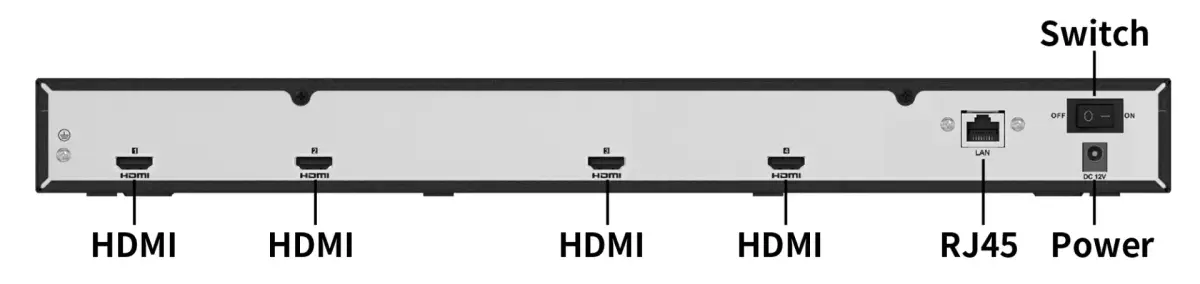

| Video Output | 4x HDMI. Support 4K Output |
| Ethernet | 1x RJ-45,10/100/1000Mbps Adaptive |
| Features | |
| TV Wall Configuration and Management | Support remote configuration and management of the video wall through the client.Screen position detection, display output number;Support search decoder. |
| Live Video Wall | Support |
| Video Wall Playback | Support |
| Video Wall Sequence | Support set the sequence according to the plan |
| PTZ Control | Support |
| Window Splicing | Support. Maximum support 4 or more screens arbitrary splicing. After splicing, it supports split screen. Number of split screen is as follows: 1/4/6/8/9/16 |
| Window Roaming | Support.. Support up to one window |
| Window Zoom | Window Zoom |
| Video Compression | H.265/H.264/ MPEG4/MJPEG |
| Audio Compression | G.711 |
| Screen Split | 1/4/8/9/16 |
| Hybrid Decoding | Support |
| RTSP Streaming | Support RTSP Streaming From Remote Device. |
| Language | Support English/Chinese |
| Virtual Banner | Support. Font Size, Color, Background Can Be Set |
| Output Resolution | Maximum Support 4K Output |
| Configuration | Network Configuration (Modify IP), Local Upgrade, Factory Restoration |
| Device Management | Support Device Search (Protocol Support 1.0, 2.0 ONVIF), Add, Delete, Group |
| Software Projection | Support |
| Hardware Projection | Support |
| Scene Management | Support. Save the Scene For Easy Use |
| Set Background | Support. |
| Access Protocol | CloudSEE Private Protocol/ ONVIF Protocol, Support ONVIF IPC/NVR Access |
| General | |
| Power Supply | DC 12V |
| Consumption | ≤18 W |
| Working Temperature | -10°C ~ 55°C |
| Working Humidity | 10% ~ 90% |
| Dimensions | 445x45x325(mm) |
| Weight | ≤3.13Kg |
Description
| Brand | Jovision |
| Video Input | 4CH HDMI |
| Connectivity | LAN |
JVS-D6016-4HD 4CH Decorder.pdf
Download
